High-Quality High Pressure 1.5kw Water Pump Exporter, Exporters

Product Application
Overview:
The main power of high-voltage electronic water pump is mainly in the range of 1KW-2.5KW, with rated voltage DC600V, high-end voltage range 400-750VDC, and low-voltage control end power supply range 9-32VDC.

Main Application:
Mainly used in hydrogen combustion engines and energy storage cooling units above 15KW

Product Features:
Shielded structure, low noise, high stability, long life;
Dielectric insulation;
High voltage water pump control;
Permanent magnet synchronous motor, high efficiency and high

Send Inquiry

Product Description

Technical Parameters and Instructions

Model:HS-030-156H-XXXX

Rated voltage:600V DC

HV Range:400-750V DC

LV Range:9-32V DC

Input power:≤1500W

Rated point flow:15600L/H@15m

Maximum head:≥22m

Protection level:IP67

Noise Level:≤70dB

Communication:CAN2.0

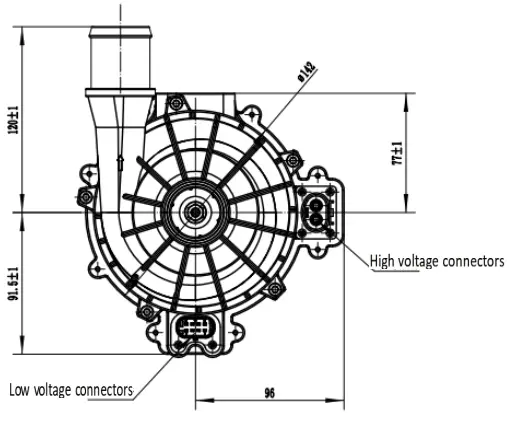

Installation Dimensions Low / High Voltage Connectors

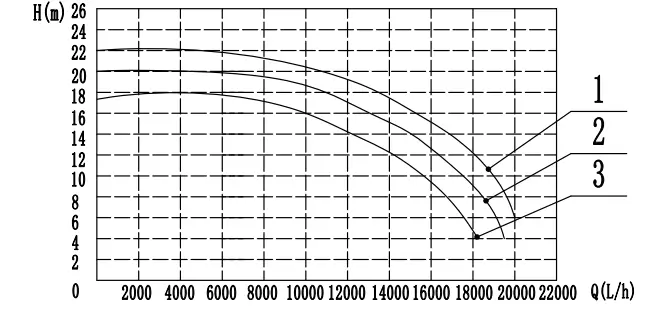

Flow Head Diagram (Q-H Curve)

Remarks: Test medium: 50% ethylene glycol antifreeze

No	Revolutions (RPM)	Power	Rated Operating Parameters	Maximum Lift
1	4850	1500W	Lift 15 meters，Q≥15600L/h	≥22m
2	4600	1300W	Lift 13 meters，Q≥15600L/h	≥20m
3	4300	1000W	Lift 12 meters，Q≥14000L/h	≥17m

Product Selection Reference

Series	Rated Voltage	Rated Power	Inlet/Outlet Dia.	Rated Conditions	Control Method	Protection
156 Series	DC450-750V	1.5KW	Φ38mm	15M / 15600L/H	CAN	IP67
156 Series	DC450-750V	1.3KW	Φ38mm	13M / 15600L/H	CAN	IP67
156 Series	DC450-750V	1.0KW	Φ38mm	12M / 14000L/H	CAN	IP67
