High-Quality High Pressure 2.5kw Water Pump Exporter, Service

Product application
Overview:
The main power of high voltage electronic water pump is mainly from 1KW-2.5KW power range, rated voltage DC600V high-end voltage range 400-750VDC, low voltage control end power range 9-32VDC.

Main applications:
Mainly used in hydrogen fuel engine and more than 1.5KW energy storage cooling units

Product features:
Shielded structure, low noise, high stability, long life;
Dielectric insulation;
High voltage water pump control;
Permanent magnet synchronous motor, high efficiency

Send Inquiry

Product Description

Technical Parameters and Instructions

Model: HS-030-256H-XXXX
Rated voltage: 600V DC
Operating voltage range (HV): 400-750V DC
Operating voltage range (LV): 9-32V DC
Input power: ≤ 2500W
Rated point flow: 21600L/H @ 20M
Maximum head: 27m
Protection level: IP67
Noise at rated points: ≤ 75dB
Communication method: CAN 2.0
Ambient temperature: -40℃ ~ 85℃
Medium temperature: -40℃ ~ 95℃
Protection measures: Low voltage end reverse connection protection, blocking protection, overvoltage protection

Note: Do not reverse connect the high voltage end.

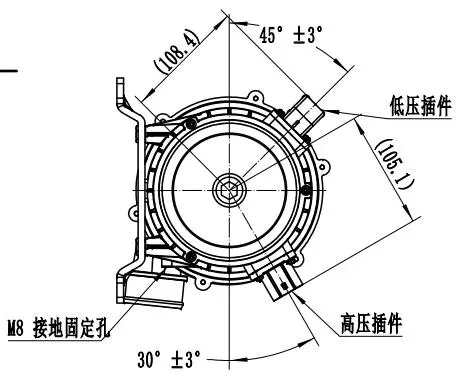

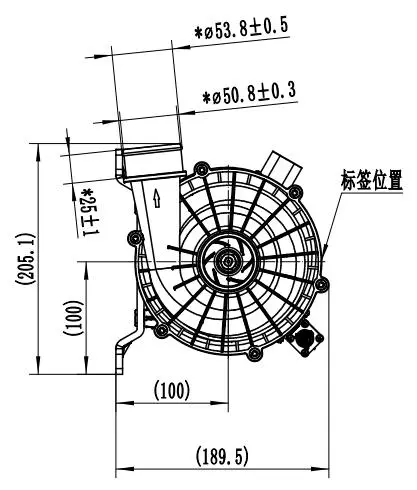

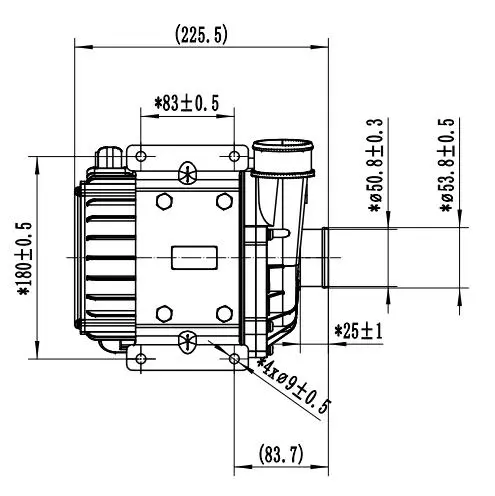

Installation Dimension Drawing

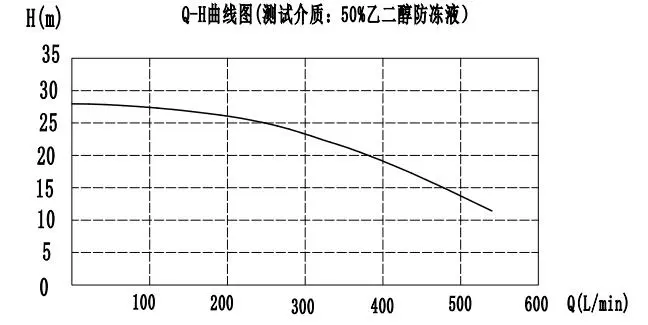

Flow Head Diagram

Figure 1: Q-H Curve

Remarks: Test medium: 50% ethylene glycol antifreeze

Product Selection Reference

Water Pump Series	Model Number	Rated Voltage	Rated Power	Inlet/Outlet Aperture	Rated Working Condition	Control Mode	Class of Protection
High Pressure Water Pump	256 Series	DC 400-750V	2.5 KW	Φ 50.8mm	20M / 21600 L/H	CAN	IP67

FAQ

What is the operating voltage range for this high-voltage pump?

The pump operates at a rated voltage of 600V DC, with a high-voltage terminal range of 400-750V DC and a low-voltage terminal range of 9-32V DC.

Is the water pump protected against extreme environmental conditions?

Yes, the pump features an IP67 protection level, making it highly resistant to dust and water ingress, suitable for demanding automotive environments.

What communication protocol does the pump use for control?

This series uses CAN 2.0 communication for precise control and integration with vehicle management systems.

What are the safety protection measures included?

The pump includes low voltage end reverse connection protection, blocking protection, and overvoltage protection to ensure long-term reliability.

What is the temperature tolerance for the pump and the medium?

The ambient operating temperature range is -40℃ to 85℃, and it can handle medium temperatures ranging from -40℃ to 95℃.

What is the maximum performance in terms of flow and head?

The pump delivers a rated flow of 21600 L/H at 20 meters of head, with a maximum head capacity of 27 meters.
