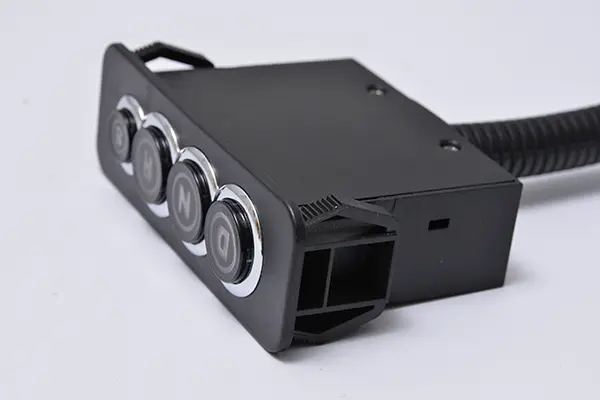

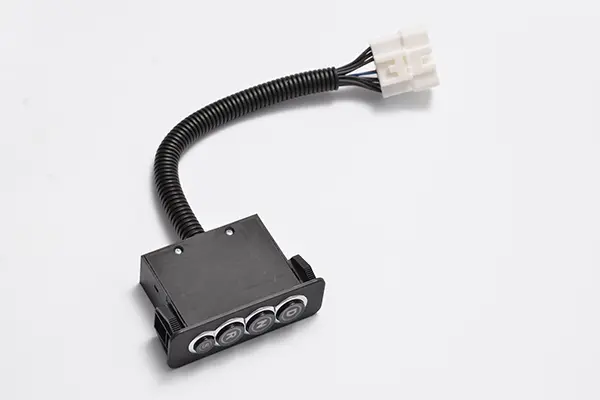

Product application
Overview:
As a novel design configuration, the electronic gear controller uses relay switching to control the state change of the output signal, eliminating the traditional mechanical shift mechanism and providing us with a simpler operation method.

Main application:
Applicable to all daily models

Product features:
Better appearance and better space utilization
Provide better power output and energy efficiency performance
High efficiency energy consumption and smooth driving
Wire harness length and plug-in are calibrated according to the specific assembly diagram

Send Inquiry

Product Description

Technical Parameters

Model: HS-150-XXX

Working Temperature: -30°C - 80°C

Storage Temperature: -40°C - 100°C

Working Humidity: < 95%

Test Temperature: 23°C ± 5°C

Protection Level: IPX5 (splashproof)

Working Voltage: 18~32V (DC)

Working Current: 100mA (maximum)

Relay Contact Max Current: 30A

Product Size

Product Size Dimensions

Product Selection

Depending on the appearance, this product is divided into two categories:

HS-150-101 (horizontal button arrangement)

HS-150-102 (vertical button arrangement)

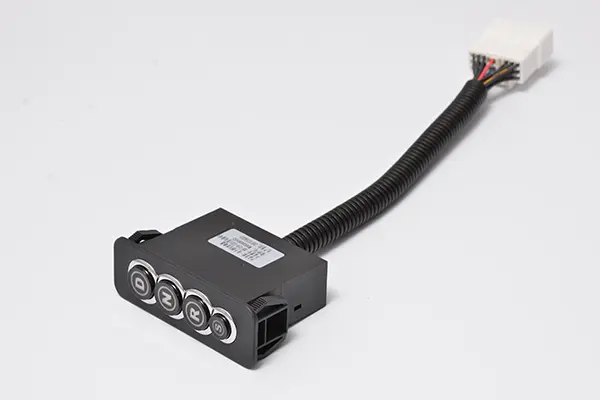

HS-150-101

HS-150-101

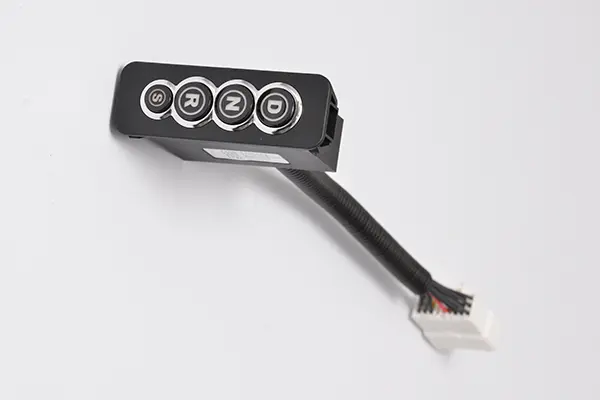

HS-150-102

HS-150-102

Installation Instructions

Please follow the wiring instructions to complete the wiring connection to avoid wiring errors that may damage the controller.

It is recommended to fix the wiring harness (bundle it) to reduce vibration and prevent the wiring harness from falling off or breaking.

Be careful to handle it with care to avoid scratches on the surface that affect the appearance.

Violent operation is prohibited during installation to avoid damage to the controller buckle that may cause inability to install and use.

Installation opening size: L102 * W31.5

Frequently Asked Questions

Q: What is the protection rating for this controller?

A: The product features an IPX5 protection level, which makes it splashproof and suitable for various working environments.

Q: What are the differences between HS-150-101 and HS-150-102?

A: The difference lies in the button arrangement: HS-150-101 uses a horizontal arrangement, while HS-150-102 uses a vertical arrangement.

Q: What is the required voltage for operation?

A: The working voltage is DC 18V to 32V, with a maximum working current of 100mA.

Q: Can it operate in extreme temperature conditions?

A: Yes, it is designed to work in temperatures ranging from -30°C to +80°C and can be stored from -40°C to +100°C.

Q: What is the maximum current for the relay contact?

A: The relay contact can handle a maximum current of up to 30A.

Q: What is the precise opening size for installation?

A: The required installation opening dimensions are L102mm by W31.5mm.
