China Power 55W Automotive Electronic Water Pump Manufacturers, Service

This series of electronic water pump has a main power of 55W and a voltage of 12V, and its outer shell is made of one-piece plastic material. The pump body is small and has a high cost performance.

Model: HS-030-151-XXX
Ambient operating temperature: -40â„ƒï½ž+100â„ƒ
Permitted medium: antifreeze
Rated voltage: 12V
Rated current: See the specific model product assembly diagram

Send Inquiry

Product Description

Technical Parameters and Instructions

Model: HS-030-151-XXX

Operating Temp: -40℃ ～ +100℃

Permitted Medium: Antifreeze

Rated Voltage: 12V, 24V

Noise Level: ≤45dB

Service Life: ≥20000 hours

Waterproof Grade: IP67

Voltage Range: DC9V ～ DC16V

Functionality: Power reverse connection protection, Dry operation protection, Stall protection, Overvoltage protection

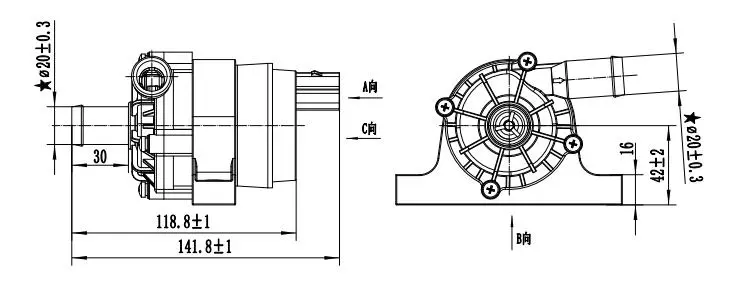

Installation Dimension Drawing

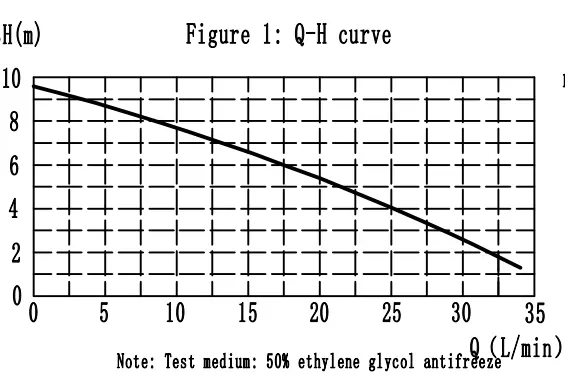

Flow Head Diagram

Product Selection

Water Pump Series	Model	Rated Voltage	Rated Power	Inlet/Outlet Diameter	Rated Operating Conditions	Control Method	Protection Level
1 Series	151	12V	55W	Φ20mm	5M/1200L/H	PWM/CAN	IP68

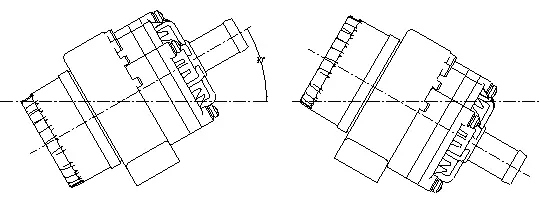

Installation Drawings & Matters

⚠️ Attention:

The water pump shall be installed horizontally, and the elevation angle of the water inlet shall not exceed 30°; It is strictly prohibited to incline the water inlet horizontally downward!
