Wholesale Power 200W-380W Automotive electronic water pump Exporter, Exporters

Product Application
Overview:
The power of this series of automotive electronic water pumps is mainly in the range of 200W-380W, with a 24V voltage platform. The length can be customized online according to requirements. The diameter of the inlet and outlet is 25mm, and 38mm. The length of the inlet and outlet can also be customized according to requirements. There are multiple control methods: CAN/PWM, etc.

Main Application:
Mainly used in the heating and air conditioning of medium-tonnage medium and heavy trucks, buses and other new energy vehicles, motor electronic control, batteries, hydrogen fuel engine auxiliary dispersion and 8-15KW energy storage thermal management unit cooling cycle.

Product Features:
Low power consumption, high efficiency, high quality
Adopt brushless motor, long life
Flexible and diverse design to meet more design needs of customers

Send Inquiry

Product Description

⚙️

Technical Parameters and Instructions

Model: HS-030-602-XXX

Ambient Temperature: -40℃ ～ 125℃

Permitted Medium: Antifreeze

Rated Voltage: 24V

Voltage Range: DC18V~DC32V

Noise: ≤60dB

Service Life: ≥20,000 hours

Waterproof Level: IP67

Functions: Reverse connection, Dry operation, Stall, Overvoltage protection

📏

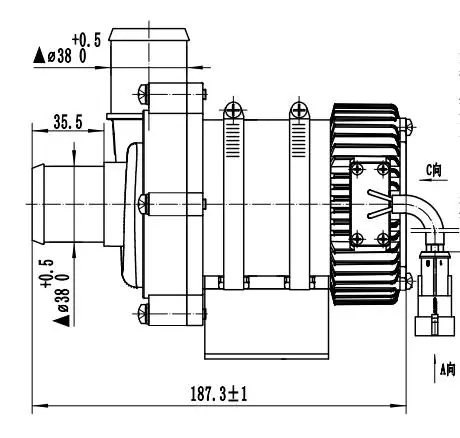

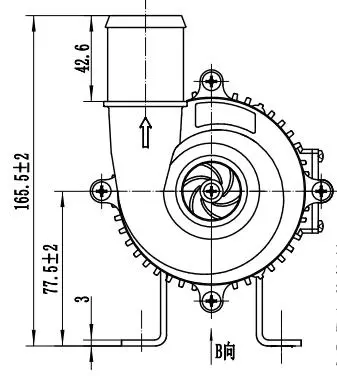

Installation Dimensions

📈

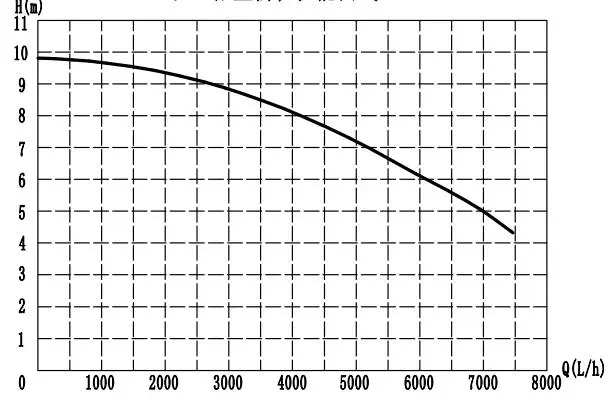

Flow Head Diagram

Figure 1: Q-H curve

Remarks: Test medium: 50% ethylene glycol antifreeze

📋

Product Selection

Water Pump Series	Series	Rated Voltage	Rated Power	Inlet/Outlet Diameter	Rated Operating Conditions	Control Mode	Protection Level
6 Series	602	DC24V	200W	Φ38mm	6M/6000L/H	PWM/CAN	IP68
	612	DC24V	250W	Φ38mm	9M/5000L/H	PWM/CAN	IP68
	612	DC24V	300W	Φ38mm	12M/5000L/H	PWM/CAN	IP68
	622	DC24V	200W	Φ25/38mm	13M/2400L/H	PWM/CAN	IP68
		DC24V	240W	Φ25/38mm	13M/3000L/H	PWM/CAN	IP68
		DC24V	280W	Φ25/38mm	16M/2800L/H	PWM/CAN	IP68
	632	DC24V	300W	Φ25/38mm	20M/2400L/H	PWM/CAN	IP68
		DC24V	340W	Φ25/38mm	18M/3000L/H	PWM/CAN	IP68
		DC24V	380W	Φ25/38mm	20M/2000L/H	PWM/CAN	IP68

🔧

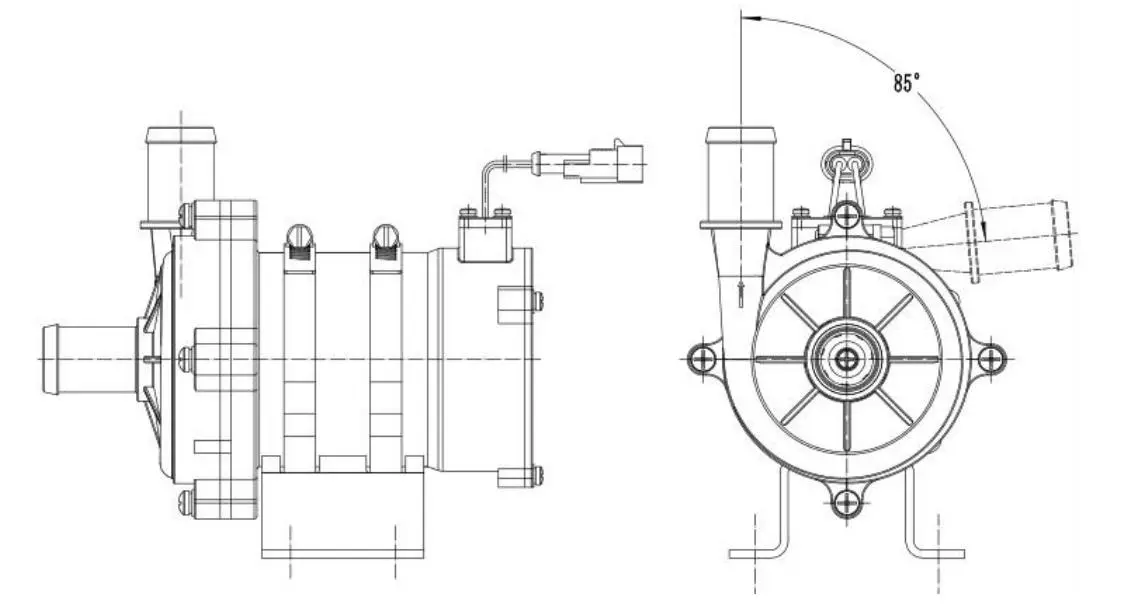

Water Pump Installation Diagram

🏢

About Us

We are a professional trading company dedicated to the import and export of new energy vehicle parts. Our main products include: electronic accelerator pedals, electronic water pumps (Low-voltage/High-voltage), electric heaters, insulation monitors, gear controllers, hoses, etc., and we have obtained more than 30 national patent certificates. Our independent production plant is a cradle of innovation, specializing in designing, researching, developing, and manufacturing new energy vehicle electronics. We can custom-make auto parts to precisely fit different vehicle models according to customers' specific needs. Now, our products are sold in numerous countries and regions across Asia, Europe, the Americas, and Africa, winning wide acclaim in both domestic and international markets.

❓

Frequently Asked Questions

What is the operating temperature range for this electronic water pump?

The pump is designed to operate reliably in ambient temperatures ranging from -40℃ to 125℃.

Does the water pump provide any self-protection features?

Yes, it includes power reverse connection protection, dry operation protection, stall protection, and overvoltage protection to ensure system safety.

What is the expected service life and waterproof rating?

The pump has a service life of ≥20,000 hours and meets the IP67/IP68 waterproof standard, making it suitable for harsh automotive environments.

What control modes are supported for product selection?

Our 6 Series water pumps support both PWM (Pulse Width Modulation) and CAN (Controller Area Network) control modes.

Can you provide customized solutions for specific vehicle models?

Yes, we specialize in researching and manufacturing new energy vehicle electronics and can custom-make parts to precisely fit different models based on specific customer needs.

What mediums are permitted for use with these pumps?

The permitted medium is antifreeze, typically tested with a 50% ethylene glycol antifreeze solution.
