Wholesale Power 60W-80W Automotive electronic water pump Supplier, Exporters

Product Application
Overview:
The main power of this series of electronic water pumps is mainly in the range of 60W-80W, with two voltage platforms of 12V and 24V.

Main applications:
It is mainly used for cooling and heat dissipation of air conditioners and drive motors in small and micro trucks and new energy vehicles.

Product features:
Small size, high efficiency, easy installation, and space saving.
Both direct plug-in and wire-swinging are possible, and CAN/PWM control methods can be realized.

Send Inquiry

Product Description

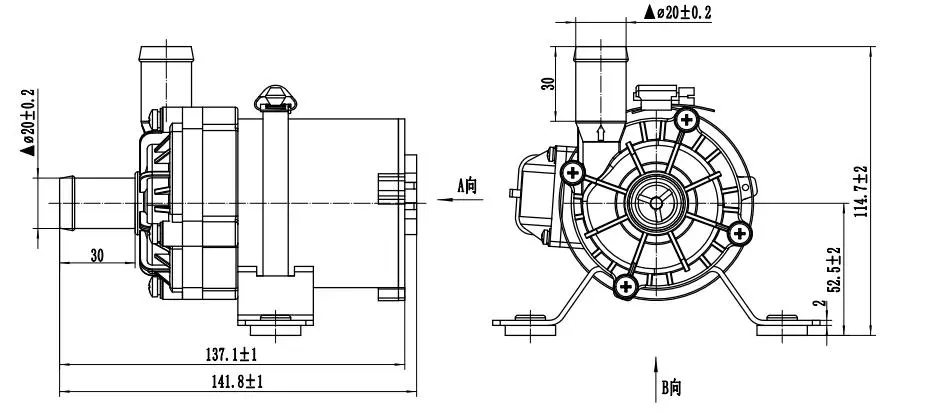

Installation Dimension Drawing

Flow Head Diagram

Figure 1: Q-H curve

Remarks: Test medium: 50% ethylene glycol antifreeze

Technical Parameters and Instructions

◈Model: HS-030-152-XXX

◈Ambient temperature: -40℃ ～ +100℃

◈Permitted medium: Antifreeze

◈Rated voltage: 12V, 24V

◈Noise level: ≤45dB

◈Service life: ≥20000 hours

◈Waterproof grade: IP67

◈Voltage range: DC18V ～ DC32V

Core Functions:
Power reverse connection protection, dry operation protection, stall protection, overvoltage protection.

Product Selection Guide

Water pump series	Sub-series	Rated voltage	Rated Power	Inlet/Outlet Diameter	Operating conditions	Control method	Protection level
1 series	151/152	12V/24V	60W	Φ20mm	5M / 1200L/H	PWM / CAN	IP68
1 series	151/152	12V/24V	80W	Φ20mm	5M / 1700L/H	PWM / CAN	IP68

Frequently Asked Questions

What is the waterproof rating of this water pump?

The pump is designed with high-standard protection, featuring IP67 and IP68 ratings depending on the specific model, ensuring reliable operation in harsh environments.

What safety protections are integrated into the system?

The product includes multiple safety features: power reverse connection protection, dry operation protection, stall protection, and overvoltage protection.

What is the expected service life of the pump?

The pump is engineered for durability with a service life rating of ≥20,000 hours under standard operating conditions.

What are the supported control methods?

The pump supports modern automotive control protocols, specifically PWM (Pulse Width Modulation) and CAN bus communication.

Can this pump operate in extreme temperatures?

Yes, it is designed to operate within an ambient temperature range of -40℃ to +100℃, making it suitable for diverse climates.

What type of medium is permitted for use?

The permitted medium is antifreeze. For performance testing, a 50% ethylene glycol antifreeze solution is typically used.
