Wholesale Evaporative Fan Manufacturer, Suppliers

Overview:

The evaporative fan is developed based on the permanent magnet DC motor technology platform, adopting high-efficiency air-water heat and mass exchange technology and closed-loop speed regulation control system.

Main Application:

Mainly used in the air conditioning evaporation system of new energy buses, traditional fuel buses and trucks.

Send Inquiry

Product Description

⚙️ Technical Parameters

✔ Rated voltage: DC 24V

✔ Current: ≤6A

✔ Speed: 3800±200rpm

✔ Noise: ≤74dB(A)

✔ Static pressure: 0Pa

✔ Air volume: ≥600m³/h

✔ Vibration: ≤60mg

✔ Working temperature: -40~120℃

✔ Service life: up to 30,000 hours

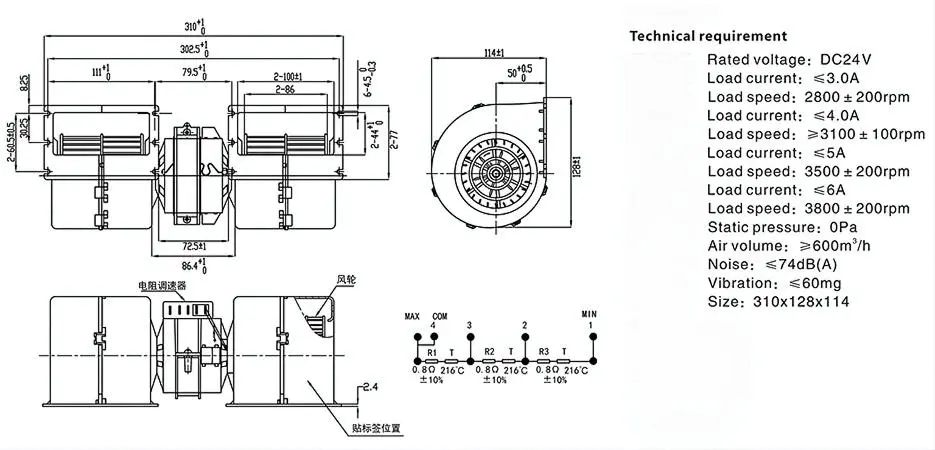

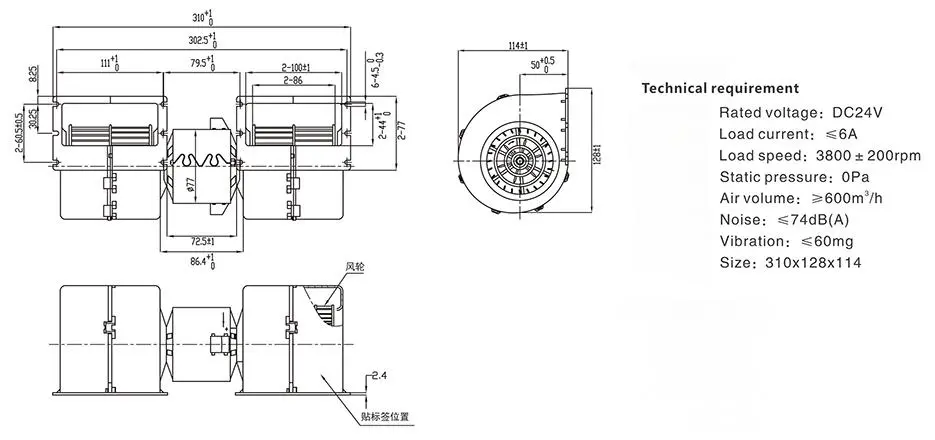

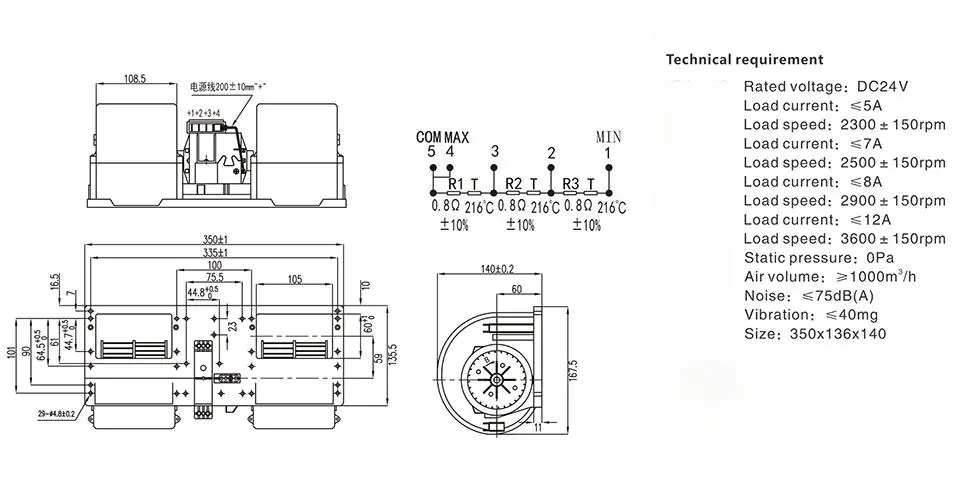

📏 Product Size

Note: For more parameters of different models, please contact us for detailed specifications.

🌟 Product Features

💎

High Quality: High quality core components ensure a long service life.

⚡

Energy Efficient: Low energy consumption with significant energy saving effects.

📊

Reliable Performance: Stable air volume and static pressure for consistent operation.

🌍

Strong Adaptability: Robust tolerance across a wide temperature range and diverse environments.

🔇

Advanced Technology: Ultra-low noise, equipped with overheating and reverse connection protection.

🔍 Product Selection

Customized services are provided according to different voltage, air volume, speed, and size requirements for the evaporative fan to perfectly match your application.

🛠️ Installation Guidelines

• Fix the wiring harness with clamps to reduce vibration and prevent falling off or breaking.

• Connect the wiring harness connector directly to the equipment/vehicle position without intermediate joints to avoid poor contact.

• Handle the fan impeller with care during installation to prevent deformation and maintain operational balance.

❓ Frequently Asked Questions

1. What is the expected service life of the evaporative fan?

The fan is designed for durability and can achieve a service life of up to 30,000 hours, depending on the specific use environment.

2. Can this fan operate in extreme weather conditions?

Yes, the fan has a wide working temperature range from -40°C to 120°C, making it highly adaptable to various working environments.

3. Does the product include safety protection features?

Yes, our fans are equipped with advanced core technology including overheating protection and reverse connection protection for enhanced safety.

4. Is it possible to customize the fan specifications?

Absolutely. We provide customized services based on your specific requirements for voltage, air volume, speed, and dimensions.

5. What should I be careful of during installation?

It is crucial to handle the impeller with care to avoid deformation. Also, ensure the wiring harness is fixed with clamps and direct connections are used to avoid poor contact.

6. What is the noise level of the fan?

The fan operates with ultra-low noise, maintained at or below 74dB(A) for a quieter working environment.
